Stroke unit

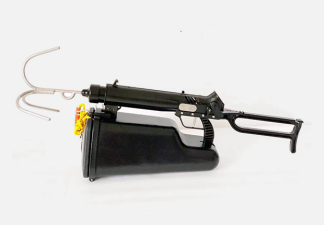

The main parameters of the thrower

Model: PTQ20 - Y140S90

Land use :(with launch bottle)

Traction rope size: Φ 3 mm x 150 m

Flat shot: 90-150 m

Water use :(with life buoy)

Traction rope size: Φ 8 mm x 100 m

Flat shot: 80-100 m

Anchor hook: 60-90m

Details are introduced

1. Amphibious, used for long-distance throwing lifesaving rope, life buoy.

2. Pneumatic injection of gas cylinder consists of launching mechanism, launching gas cylinder assembly, charging device, protection device, fast automatic filling and rescue device accessories, etc

3. Land use :(with launch bottle)

Traction rope size: Φ 3 mm x 150 m

Flat shot: 90-150 m

Water use :(with life buoy)

Traction rope size: Φ 8 mm x 100 m

Flat shot: 80-100 m

Anchor hook: 60-90m

Climbing anchor hook: titanium alloy manufacturing, the maximum bearing 1000 kg, recommended safe bearing 330 kg

The standard list:

Hand pack a launcher a black launcher bottle

Emission bottle protective sleeve 1 gas filled tube 1 red life buoy plastic sleeve 5

Automatic inflatable life buoy 1 carbon dioxide gas cylinder 5 earplugs 1 pair

Cylinder interface 5 triggers 5 wrenches 1

Two copies of instructions (Chinese version) and one copy of CD-ROM

3mm diameter rope 150m each (equipped with a small rope bucket)

8mm diameter rope 100 meters 1 piece (equipped with a big rope bucket) 1 projectile anchor hook (optional)

Climbing anchor hook: titanium alloy manufacturing, the maximum bearing 1000 kg, recommended safe bearing 330 kg
