Stroke unit

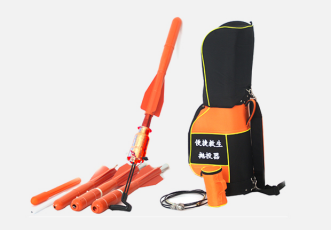

The main parameters of the thrower

Model: PTQ7.0 - Y110S80

Working pressure: 6MPa

Assembly weight: 7.5kg

Rescue rope size: 150/120 Φ MMX 3 meters

Cylinder capacity: 33g cylinder

Details are introduced

Main parameters:

Working pressure: 6MPa

Assembly weight: 7.5kg

Rescue rope size: 150/120 Φ MMX 3 meters

Cylinder capacity: 33g cylinder

Buoyancy: The water rescue will automatically inflate into a life buoy within 5 seconds after it hits the water, generating a buoyancy of more than 8KG.

Launching distance:

For water use, the maximum firing distance of water rescue projectile is ≥80m

The longest firing distance of the rescue projectile is ≥110m when it is used on land
