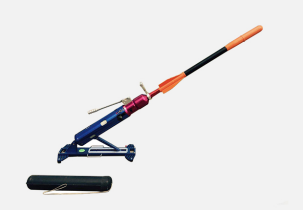

Stroke unit

The main parameters of the thrower

Model: PTQ12 - Y450

Working pressure: 12MPa

Weight 17KG (net weight)

The projectile mass is 1.8KG

Airtime: 5-7 seconds

Launch muzzle velocity :96m/s

Details:

Application fields:

1. Water lifesaving: suitable for complex rescue places such as river, lake, river and seaside, which can achieve long-distance water lifesaving.

2, land rescue: suitable for civil, police, military, fire, ship-to-ship, ship-to-shore, high-rise or mountain stream rescue occasions

Line throwing my homework

Technical parameters:

(1) the use of compressed air, working pressure: 12MPa, weight 17KG (net weight), projectile mass 1.8kg.

(2) Projection distance: the distance of the automatic inflatable life buoy for water use is ≥ 300m, and the distance for land use is up to 450m.

(3) rope specifications: ￠3mm×480M, rope pulling force is not less than 2000N, rescue ammunition, rescue rope and water protective cover can be used repeatedly.

(4) Flight time: 5-7 seconds, initial velocity :96m/s.
