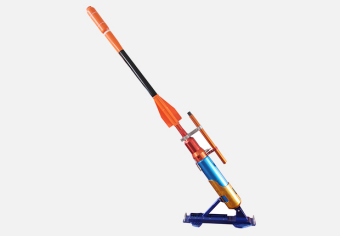

Stroke unit

The main parameters of the thrower

Model: PTQ8.5 - Y240 / Q210

Working pressure: 8.5MP

Weight 7.5kg (net weight excluding base)

The projectile mass is 1.8KG

Airtime: 3-5 seconds

Launch muzzle velocity :60m/s

Details are introduced

1. Water lifesaving: suitable for complex rescue places such as river, lake, river and seaside, which can achieve long-distance water lifesaving.

2, land rescue: suitable for civil, police, military, fire, ship-to-ship, ship-to-shore, high-rise or mountain stream rescue occasions

Rope throwing.

3. It can be used 4-6 times once inflated to speed up the rescue efficiency.

Product parameters and characteristics:

1. Using compressed air, working pressure: 8.5MP, weight 7.5kg (net weight excluding base), projectile mass 1.8kg.

2. Projection distance: the distance of the automatic inflatable life buoy is ≥210 meters for water use, and the maximum distance can reach 250 meters for land use.

3, throwing rope specifications: ￠3mm×280/220/150 M, three kinds of throwing rope tension is not less than 2000N, rescue ammunition, rescue rope and water protective cover can be used repeatedly.

4, the air flight time: 3-5 seconds, the launch velocity :60m/s, water with the rescue bomb water with the floating device into the water within 5 seconds automatically inflate into the life buoy, produce more than 8 kg of buoyancy.

6, the use of high pressure air as the launching power, no open fire, can be shot from the flammable area or into the flammable area.

7. The projectile is equipped with a buffer base, and the Angle instrument on the base is used to adjust the launching Angle, which can make the rescue projectile launch closer to the destination and the projectile launch distance farther.Equipped with safety button insurance interlock, safe and reliable, simple and convenient operation.

9. The thrower is equipped with a deflating valve.The exhaust valve can be used to completely discharge the remaining gas inside the thrower.At the same time, the internal pressure value of the thrower can be adjusted through the vent valve, so as to achieve the ideal hitting and throwing state.Ensure the safety of users.

10. The cylinder of the thrower is equipped with a barometer, which can clearly see the inflatable pressure value inside the thrower when it is used, so as to avoid the excessive or small air pressure which may affect the use effect.At the same time also ensure the safety of the use of personnel.

11. The thrower is equipped with a rope receiver, which can quickly recover the rescue rope and improve the time and efficiency of rescue.

12. The packing of the thrower is golf bag type outer packing, which can be lifted and carried.Easy to carry, conducive to the rescue workers quickly into the rescue work.

13, distance and toss standard configuration: a set of basic emission components, cylinders, base with a 1.5 L, land use projectile 2 250 meters (including rescue rope), water use projectile 2 210 meters (including rescue rope), training plays a, Okinawa, rescue play a launch tube, the training play a launch tube, the rope bag 1 (including 150 m rope), 16 grams of CO2 gas cylinders, four trigger agent 4, 2 sets of water use cases, common seal a set, golf bag packing type 2.(Aluminum alloy tie rod box is optional)
