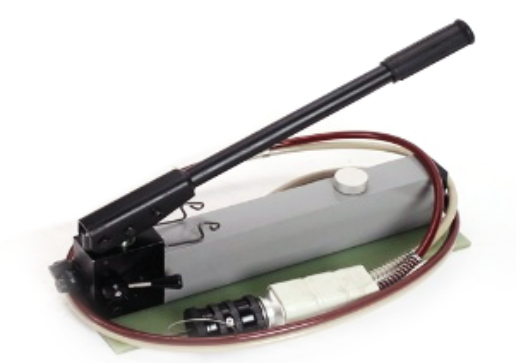

Manual pump

BS-63

Rated working pressure: 63MPa

Handle force: 380N

Hydraulic oil tank volume: 1.3L

High pressure flow: 1.5ml/time Low pressure flow: 12ml/time

Low pressure output pressure: 5~10MPa;

Weight <7kg

Accessories: Backpack One

Dimensions: Length * Width * Height: 500 × 150 × 190mm

The light hand pump generates hydraulic power without the need for fuel or power and manual operation. Mainly used as a power source for single-acting hydraulic equipment (expanders, shear expanders, shears, struts). A single tube connection is operational. The utility model has the advantages of light weight, convenient carrying, small volume, high and low pressure automatic conversion, and the operation is simpler.
