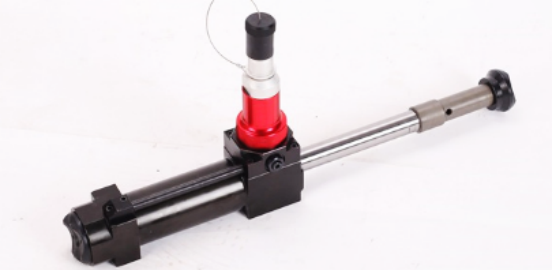

Rescue top bar (no tube)

GYCD-100/470

Rated working pressure: 63MPa

Supporting force: 100KN

 Weight <8.5kg

Closing length: 350mm

Supporting stroke: 200mm Lengthening

rod length: 120mm

Accessories: one backpack, one extension rod

 Dimensions: 350 × 75 × 285mm

The light hydraulic struts are easy to operate and can be connected to the top with a single tube connection. With a single person, you can easily reach the rescue site to implement the rescue. The product is light weight, small size, functional and can carry and march for a long time. Can face various accidents, traffic accident rescue, earthquake and other disaster relief, building collapse rescue. In addition, the light struts also have a self-locking function of the two-way hydraulic lock, which reduces the risk of rescue personnel when the struts are lowered. Single interface design, with pressure operation, one step in place. The 360-degree rotating snap-on interface makes operation easier and safer.
