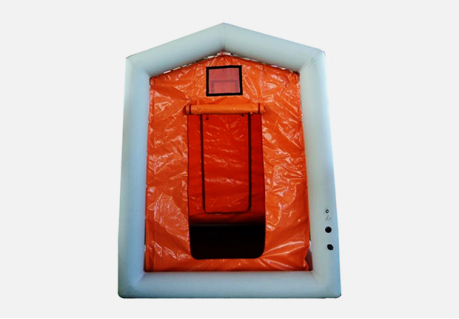

Single-person wash-out tent

Single-person wash-out tent

Model:KALN-DZ04

Introduced

The integrated design is adopted for single person decontamination tent. The whole washing and decontamination room can be quickly erected by simply filling and exhausting electric or pedal pump to inflate the frame. After connecting the water supply pipe of the shower room, the whole system can be put into use.

Technical specifications and parameters:

1. The inflatable frame airbag is equipped with an over pressure protection valve to ensure that over inflation is not damaged.

2. Washing and decontamination shower room and decontamination pool: it is an inflatable frame structure (PVC coated airtight cloth), with bottom length of 2.2M, width of 2.2m and height of 2.5m. PVC composite cloth waterproof awning curtain is hung inside, and 2 doors are designed. The air hole is on the inflatable frame column of tent door.

3. The diameter of the air bag was 230mm.

4. Working pressure 0.4 bar, test pressure 0.5 bar.

5. The rated volume is 500 L, the air demand is 680 L, and the average flow rate is 30 L / min

6. Inflation time: 25 seconds

7. Equipped with electric charging and suction machine and foot pump.

8. The configuration includes: inflatable frame, shower pool, spray pipe including spray head, shower cover tool bag (fixing nail and repair material), portable packing bag.

9: Weight: 27kg

10. Quick charging device can be selected, and carbon fiber cylinder can be used for rapid filling to improve rescue efficiency.
