All-terrain rescue stand

 All-terrain rescue stand

Introduced

(1) Pulley strut: three-section telescopic device, the minimum storage length is ≤1550MM. The maximum extension length is ≥3150MM and the weight is ≤11KG. The pulley is equipped with two channels to accommodate the rescue rope diameter ≥13MM, wire rope diameter ≥8MM, rated load ≥280KG, with 2 quick link pins and 2 telescopic pin fixing pins.

(2) Standard pillar: three-section telescopic device, the minimum storage length is ≤1420MM, the maximum extension length is ≥3050MM, the weight is ≤9KG, and there are 2 quick link pins and 2 telescopic pin fixing pins.

(3) Standard beam: equipped with tool kit, length ≥2000MM, rated load in the middle of beam is ≥280KG. Weight ≤21KG. (Optional beam 1: equipped with tool kit, length ≥3000MM, rated load in the middle of beam is ≥230KG, weight ≤ 27KG. Optional beam 2: equipped with tool kit, length ≥ 4200MM, rated load in the middle of the beam ≥ 175KG, weight ≤ 34KG.)

(4) Conventional three-legged rescue bracket: composed of three standard pillars, three-section telescopic design. Minimum storage size: ≤ 372MM * 135MM * 1430MM. Maximum length: ≥ 3020MM, unfolded size: height ≥ 2000MM. Bottom diameter ≥ 1500MM. Rated load capacity: ≥ 450KG, weight ≤ 26KG.

(5) Three-leg rescue bracket with pulley head: It is composed of 2 standard pillars and 1 pulley pillar. It has three-section telescopic design, minimum storage size: ≤372MM*135MM*1560MM. Maximum length: ≥3120MM, height ≥3000MM.Bottom Diameter ≥1500MM. Rated load capacity: ≥450KG.

Weight ≤ 28KG.

(6) Four-leg rescue bracket: composed of 3 standard pillars and 1 pulley strut, three-section telescopic design, height ≥3000MM. Bottom diameter ≥1800MM. Rated load capacity: ≥450KG, weight ≤39KG

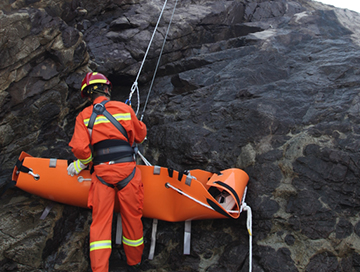

(7) Cliff type rescue: It is composed of one standard pillar and one pulley pillar. Three-section telescopic design. Rated load ≥ 280KG. Weight ≤ 21KG.
