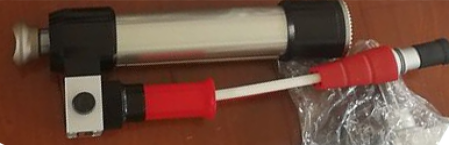

Hydraulic brace 2

GYCD-120/450-750

Rated working pressure 63MPa

110 kn of jacking force

Operating range 450-750

Support the top line 300mm

11 kg or less weight

Appearance size (length * width * height) 450×90×170mm

The jacking rod can be used for the operation of jacking and pulling on the rescue site.In addition, the structure of the product is optimized, and the distance and stroke of the top support are increased.Increased rescue space.

1, Double tube single interface design, can be operated with pressure, one step in place.

2. The interface is 360-degree rotary buckle, which makes the operation more convenient and safer.

3, anti-skid switch control, make the operation more accurate.

4. The inner part adopts two-way hydraulic lock, with self-locking function.

5, the piston rod head and the jacking rod base of the non-slip claw structure so that the jacking rod in the inclined or smooth surface can be safe and stable

6. It has the advantages of light weight, small size, strong function and good coordination of side load
