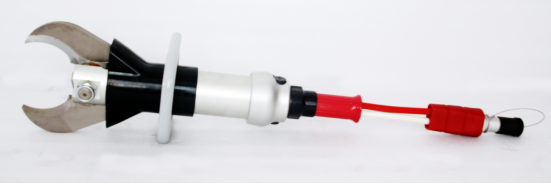

Back hydraulic shear

GYJQ-28/130-10

Rated working pressure 63MPa

Shear force 420KN

Opening distance 130

Shear ability (Q235 material) ф28mm

Steel plate thickness (Q235 material) 10mm

No-load closed open 6-8s

Weight ≤14kg

Dimensions (length * width * height) 670 × 190 × 180mm

The cutter can be used for shearing, separating, etc. in the rescue site. In addition, the knife edge material has been updated to enhance the gloss of the knife edge. Increases the hardness of the knife edge and is safer during use.

1. Double-tube single-interface design, with pressure operation, one step in place.

2, the interface is a 360-degree rotating buckle, the operation is more convenient and safer.

3, anti-skid switch control, making operation more precise

4, the internal use of two-way hydraulic lock, with self-locking function.

5, the perfect use of the back pull of the curved blade, so that it can overcome the vehicle of various structures.

6, with light weight, flexible performance, strong functionality, body balance, labor-saving, easy to operate and so on.
