Personal protective equipment

1.

Fire helmet Fire Fighting Helmet  For Fireman

(1) This product complies with the GA 44-2015 "Fire Helmet" standard.

(2) Composition: It is composed of cap shell, buffer layer, mesh comfort layer, wearing device, mask, shawl, etc. It is a half helmet type helmet structure.

(3) The mask is made of transparent, impact-resistant, heat-resistant, anti-fog and scratch-resistant materials, and can be positioned at will during the opening and closing process.

(4) The shawl loading and unloading type is made of flame-retardant, waterproof and radiation-resistant fabrics, which can completely cover the shoulders of firemen.

(5) The components of the helmet are installed in place, firm and correct, without loosening or slipping, the mask can be stretched or turned flexible, the shawl is easy to remove, and the front and rear weights are balanced.

(6) Impact absorption performance: After high temperature, low temperature, water immersion, and radiant heat pretreatment, the impact absorption performance test is carried out. The maximum impact force received by the head mold: ≤ 3780N.

(7) Electrical insulation performance: cap shell leakage current 0.76mA

(8) Mass: 1143g.

(11) The product has the characteristics of impact absorption, impact acceleration resistance, penetration resistance, combustion resistance, flame retardancy, heat resistance, electrical insulation, etc.

2.

Firefighter fire protection headgear

(1) The product meets the requirements of ga869-2010 "fireman's protective head cover for fire fighting".

(2) To provide effective head and neck protection for firefighters, it can be used with fire helmet and respiratory protection equipment.

(3) Fabric performance: flame retardant aramid knitted fabric, double-layer structure.

Flame retardant properties: warp burning time: ≤ 2S; weft burning time: ≤ 2S; warp damage length: ≤ 100 mm; weft damage length: ≤ 100 mm; no melting and dripping phenomenon; no fading, no peculiar smell, soft and comfortable, very good air permeability.

(4) Thermal stability: size change rate 2.0%, no discoloration, melting and dripping phenomenon.

(5) Overall performance: seam strength ≥ 185n, facial opening size stability 1.0%, weight 144.5g.

(6) It is used for inner protection of head and neck in flammable and explosive places such as combustible gas, dust and steam.

(7) It has the characteristics of flame retardant, heat insulation, heat preservation, sweat absorption and corrosion resistance.

3.

Fire Fighting Gloves

This product meets the GA7-2004 "Fire Gloves" standard.

Combined structure: composed of outer layer, waterproof layer, heat insulation layer and lining.

It has flame retardancy, overall thermal protection, heat resistance, mechanical properties, and barrier properties.

Outer layer of gloves:

(1) Continuous burning time in warp direction: 0s; continuous burning time in zonal direction: 0s;

(2) Warp direction smoldering time: 0s; zonal smoldering time: 0s;

(3) Damaged length in warp direction: 55mm; Damaged length in weft direction: 64mm.

Insulation layer of gloves:

(1) Continuous burning time in warp direction: 0s; continuous burning time in zonal direction: 0s;

(2) Warp direction smoldering time: 0s; zonal smoldering time: 0s;

(3) Damaged length in warp direction: 46mm; Damaged length in weft direction: 44mm.

Overall thermal protection performance of gloves: 28.9cal/cm².

Heat resistance of gloves: shrinkage rate of 1.5%; heat resistance of lining: shrinkage rate of 1.0%.

Wear resistance of palm and back: >2000.

The palm and back cutting force are more than 15.0N.

Palm tear strength: 88.7N.

Palm piercing force: 57.4N.

Dexterity performance: Pick up steel rods with a diameter of 6.0mm 3 times within 30s.

Grip performance: the pull-to-gravity ratio is 95.0%.

Wearing performance: Wearing time 1.26s.

4.

Firefighting Personal Protection Fire fighter boots

(1) The product meets the standard of ga6-2004 "protective boots for firefighters".

(2) The material used for the inner liner and inner sole liner of the boot head is high-quality steel strip; the material used for the boot top and outer sole is natural rubber.

(3) The thickness of the inner liner of the boot head is greater than or equal to 1.8 mm; the thickness of the inner liner of the boot bottom is greater than or equal to 0.5 mm.

(4) Rubber surface, girth and sole: with physical and mechanical properties, oil resistance, sulfuric acid resistance and sodium hydroxide resistance.

(5) Anti smashing performance: static pressure 18.0 mm, impact 18.1 mm.

(6) Puncture resistance: 1524n.

(7) Electrical insulation performance: breakdown voltage > 5kV, leakage current 1.4ma.

(8) Heat insulation performance: 7.9 ℃.

(9) Radiation resistance: 6.8 ℃.

(10) Mass: 2.574kg.

(11) Antiskid performance: > 15 °

5.

 fire man protective clothing suit for fire

fighting

(1) The product meets the standard of ga10-2014 "protective clothing for firefighters".

(2) Structure: it is composed of outer layer, waterproof and breathable layer, heat insulation layer and comfortable layer.

(3) Reflective sign tape material: 3M visual reflective tape material.

(4) Flame retardancy:

Meridional: afterburning time ≤ 2S; damage length: ≤ 100 mm.

Latitudinal: afterburning time ≤ 2S; damage length: ≤ 100 mm.

(5) Thermal stability: outer layer, waterproof and breathable layer, heat insulation layer, outer reinforcing material, comfort layer, life-saving towing belt, change rate ≤ 10%.

(6) Outer layer, waterproof and breathable layer, thermal insulation layer and comfortable layer: warp and weft shrinkage ≤ 5%.

(7) The outer longitudinal breaking strength is 1315n; the outer latitudinal breaking strength is 962.6n.

(8) The longitudinal breaking strength of comfort layer: 419.3n; the outer layer: 365.1n.

(9) The tear strength of outer layer is 249.9n in warp direction and 171.4n in weft direction.

(10) Waterproof and breathable layer: hydrostatic pressure resistance > 50kPa; oil repellency: Grade 3.

(11) Outer layer: warp seam breaking strength: 1013n, weft seam breaking strength: 832.1n.

(12) After the heat resistance test, the reflective material surface has no carbonization and shedding phenomenon.

(13) After high and low temperature performance test, there will be no fracture, wrinkling and distortion.

(14) Weight: 2.668kg.

(15) Appearance: All parts are ironed and flat, neat, without hot yellowing, water stains, gloss, pink printing, thread ends; the collar is flat and does not turn up; the symmetrical parts are basically the same; the adhesive lining will not be degummed and the surface is miserable Glue; the label position is correct, and the number and type signs are accurate and clear.

6.

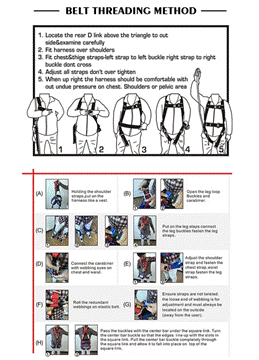

Fire  safety belt

The webbing width of the safety belt is 70mm.

The thickness of the webbing: 3±0.2mm.

Static tension in the upright direction: ≥13KN.

The safety belt weighs 0.698kg.

Pull ring thickness: 5.5mm.

1.This product complies with the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard requirements.

2.The safety belt can be adjusted in size to fit different body types.

3.The stitching of the safety belt matches the webbing, which is easy to check with the naked eye; the stitching interface and the stitching end are not less than 13mm; the line and stitches are straight and neat, without obvious bending or stacking, no skipped stitches, open threads, or breaks line.

4.The buckle of the safety belt makes the length of the safety belt easy to adjust, fast to wear, and without loosening or slipping.

5.The buckle and pull ring have no edges, corners, burrs, cracks, obvious indentations and scratches, and their edges are curved.

6.High temperature resistance performance: The webbing and sutures of the safety belt will not melt or burn.

7.

Class 1 chemical protective clothing

(1) This product complies with the national GA770-2008 "Firefighter Chemical Protective Clothing" technical standard.

(2) It is used to protect the whole body when disposing of high-concentration, strong-permeable liquids and gases at the scene of chemical disasters.

(3) Face screen: It is made of hard transparent double-layer material, large window, no deformation, no delamination, treated with permanent anti-fog coating on both sides, resistant to chemical penetration.

(4) The product has the properties of flame retardant, heat aging, cold resistance, non-slip, and puncture resistance.

(5) Heat aging resistance: Put the sample in the oven at 125°C and take it out after 24h. Observe that the samples are not sticky or brittle.

(6) Cold resistance: After the sample is frozen at -25℃ for 5 minutes, take the sample out, straighten it quickly, and observe that there is no crack on the surface of the sample.

(7) Flame retardant performance (flame burning time): 1.4s.

(8) Flame retardant performance (flameless burning time): 1.0s.

(9) Flame retardant performance (damaged length): 7.7cm.

(10) Tensile strength: warp direction: 16kN/m, weft direction: 10kN/m.

(11) The puncture resistance of the boot sole: ≥1100N.

(12) Anti-slip performance: the initial sliding angle left: 23.0°, the initial sliding angle right: 23.5°.

8.

Secondary chemical protective clothing

(1) This product complies with the national GA770-2008 "Firefighter Chemical Protective Clothing" technical standard.

(3) It is used to protect the whole body when handling high-concentration, strong-permeable liquids and gases on-site in chemical disasters.

(3) Face screen: It is made of hard transparent double-layer material, large window, no deformation, no delamination, treated with permanent anti-fog coating on both sides, resistant to chemical penetration.

(4) The product has the properties of flame retardant, heat aging, cold resistance, non-slip, and puncture resistance.

(5) Heat aging resistance: no stickiness or brittleness after 125℃×24h.

(6) Cold resistance: After the sample is frozen at -25℃ for 5 minutes, take the sample out, straighten it quickly, and observe that there is no crack on the surface of the sample.

(7) Flame retardant performance (flame burning time): 1.4s.

(8) Flame retardant performance (flameless burning time): 1.0s.

(9) Flame retardant performance (damaged length): 7.7cm.

(10) Tensile strength: warp direction: 23kN/m, weft direction: 20kN/m.

(11) The puncture resistance of the boot sole: ≥1100N.

(12) Anti-slip performance: the initial sliding angle left: 22.5°, the initial sliding angle right: 23.0°.

(13) Overall water leakage resistance: no leakage after 20 minutes.

9.

Emergency rescue suit

This product complies with the GA633-2006 "Firefighter Rescue Protective Clothing" standard.

It has the properties of anti-static, flame-retardant, abrasion resistance, light weight, and strong tensile strength; overall coordination, comfortable to wear, easy to put on and take off boots and gloves, shoulders, elbows, hips and knees are thickened to increase abrasion resistance.

It is made of flame-retardant cloth material, oil- and water-repellent, flame-retardant, wear-resistant, anti-static, lightweight, and strong in tensile strength. The color is orange-red.

Flame retardant performance:

Warp burning time: 0s; warp damage length: 58mm; latitude burning time: 0s; latitude damage length: 52mm; no melting or dripping.

Tearing strength: 170N in warp direction; 120N in weft direction.

Breaking strength: 1200N in warp direction; 950N in weft direction.

Joint breaking strength: 560N.

Mass: 0.86kg.

Reflective marking tape: continuous burning time 0s, no melting or dripping.

10.

Rescue gloves

This product complies with the GA633-2006 "Firefighter Rescue Protective Clothing" standard.

Structure: The glove is a five-finger separation type.

The use of flame-retardant fabrics is permanently flame-retardant, heat-insulating, anti-static, oil-proof, and waterproof, and provides good protection for operators.

Flame retardant performance:

Continuous burning time 0s; damage length 11mm; no melting or dripping phenomenon.

Wear resistance: Under a pressure of 9kPa, it will not be worn through after 8000 cycles of friction.

Grip performance: the ratio of pulling force between wearing gloves and not wearing gloves>80%.

11.

Rescue Helmet Fire Rescue Helmet

This product complies with the industry GA633-2006 "Firefighter Rescue Protective Clothing" standard.

The helmet shell is made of high-strength materials, with ventilation holes on both sides of the top ribs, high impact resistance, and obvious reflective signs.

Half helmet type. The helmet consists of a cap shell and an adjustable headband to ensure that it is not easy to fall when working in a small space.

Mass: 660g.

The surface of the cap shell is bright and shiny, free of stains, bubbles, defects and other defects that damage the appearance.

The parts of the helmet are installed in place, firm and correct, without loosening or slipping.

Impact absorption performance: impact force ≤ 3780N.

The tensile strength of the chin strap: The extension length of the chin strap is 8mm.

It has shock absorption and penetration resistance.

12.

Fire rescue boots

This product complies with the industry GA633-2006 "Firefighter Rescue Protective Clothing" standard.

Foot and ankle protection during rescue operations, with puncture resistance, cut resistance, penetration, and electrical insulation properties, as well as anti-radiation, heat penetration, abrasion resistance, non-slip, electrical insulation, and puncture resistance of the boot upper Wear and other performance.

Wear resistance of the boot upper: The boot upper material has not been worn through after 20,000 cycles of friction.

Anti-slip performance: initial slip angle> 15°.

Mass: 1.515kg.

Electrical insulation performance: breakdown voltage ≥ 5000V, leakage current <3mA.

Penetration resistance of the boot sole: The puncture resistance of the boot sole is ≥1100N.

13.

Aluminized Heat Insulation protective clothing for firefighters

(1) This product complies with the GA634-2015 "Firefighter's Insulation Protective Clothing" standard.

(2) Purpose: It is used for whole body protection in places with strong heat radiation. It has the properties of hydrostatic pressure resistance, flame retardant, thermal stability, and waterproof.

(3) All parts are sewn smoothly, and there will be no defects such as loose thread, skipped stitches and breakage.

(4) Outer layer performance of the fabric:

Warp tearing strength 100N; weft tearing strength 100N; warp peeling strength 9.3N/30mm; weft peeling strength 9.2N/30mm; hydrostatic pressure resistance (water temperature 20℃)> 30kPa (front contact with water surface).

(5) Flame retardant performance:

Warp continuous burning time is 0s; weft continuous burning time is 0s; warp damage length is 14mm; weft damage length is 14mm; no melting or dripping phenomenon.

(6) Thermal stability:

The dimensional change rate is 1% in the warp direction and 1% in the weft direction. After 5 minutes at 260°C, there is no discoloration, delamination, melting and dripping.

14.

 Fire Fighting Suit Firemen Fireproof Suit

(1) The product meets the requirements of the Q/TZHJQB-2018 "Fire Protection Clothing" standard.

(2) The product has the properties of flame resistance, heat insulation, and radiant heat penetration resistance.

(3) Thefire avoidance clothing has no pollution, disconnection or damage, and the accessories are firmly assembled without loosening or falling off.

(4) Mass: 6.5kg.

(5) Tearing strength: 80N in warp direction and 44N in weft direction.

(6) Anti-radiation heat penetration performance of the overall composite layer fabric: the inner surface temperature rises 15.5℃

15.

 Bee proof clothing

The mask is made of polycarbonate wire mesh with good protection performance.

purpose

Facial ventilation, comfortable to wear, suitable for anti biting, anti bee, waterproof, etc.

Bee proof clothing is a new generation of basic multi-functional protective clothing that firefighters wear when they remove the wasp nest. It is made of PVC artificial leather with flame retardant treatment. It has many protective functions such as anti cutting and anti puncture. The structure is connected. The design is novel and the structure is reasonable.

16.

Cooling Vest with ice Gel bag for fireman

(1) The product meets the industry standard of ga1265-2015 "cool storage firefighter cooling vest".

(2) The use of advanced insulation to extend the cooling time, not too hot and not too cold, always maintain a constant temperature. Constantly absorb, store and release excess heat, so that people always feel comfortable.

(3) Constant temperature, contact temperature of 14 ~ 20 ℃ for 3-6 hours under the external environment temperature of 90 degrees Fahrenheit. The utility model is composed of a vest, a cold storage bag and a cold isolating plate.

(4) Application: suitable for heatstroke prevention and cooling in high temperature, high heat and high humidity environment, such as metallurgy, casting, glass, fire fighting, chef, etc.

(5) 865kg.

(6) The contact temperature is 5.4 ℃.

(7) The phase change heat of the cold storage agent is 298.2KJ/kg.

17.

Explosion-proof Firefighters Rescue Caller

(1) This product complies with the GB 27900-2011 "Firefighter Screaming Device" standard.

(2) Explosion-proof mark: Exib ll B T4 Gb.

(3) It has functions such as pre-alarm, automatic alarm, manual alarm, low-voltage alarm, and communication.

(4) Allow static time: 30±2s.

(5) Pre-alarm time: 15±2s.

(6) Pre-alarm sound level intensity ≥80dB.

(7) The alarm sound level intensity is ≥100dB.

(8) Continuous working time: continuous power-on time> 24h; continuous alarm time ≥ 240min.

(9) Mass: ≤300g.

(10) It has the following properties: explosion-proof performance, insulation performance, waterproof performance, weather resistance and mechanical environment resistance.

(11) Waterproof performance: The rescuer is placed in a container with a water depth of 1.5m for 2h, no water seeps into the rescuer, and the rescuer can work normally.

(12) Luminous brightness: >300cd/㎡.

(13) In a dense smoke environment, it can indicate the location of the rescuer.

18.

Universal safety rope（T13）

The product meets the standard of ga494-2004 "fall prevention equipment for fire protection".

Breaking strength: ≥ 40kN.

The material of rope skin and rope core is nylon filament.

The diameter is 13.0 mm.

The minimum breaking strength of the universal safety rope is not less than 40kN.

When the bearing capacity reaches 10% of the minimum breaking strength, the elongation of the safety rope is 6.5%.

High temperature resistance: after the high temperature resistance of 204 ℃± 5 ℃, the safety rope will not appear melting and coking phenomenon.

19.

Universal safety rope（T16）

The product meets the standard of ga494-2004 "fall prevention equipment for fire protection".

The safety rope is a continuous structure, and the main load-bearing part is made of continuous fiber.

The safety rope adopts the sandwich rope structure.

There is no mechanical damage on the surface of the safety rope, and the whole rope is uniform in thickness and structure.

The diameter of safety rope is 16.0 mm.

Breaking strength: the minimum breaking strength of universal safety rope is 50.0kn.

Elongation: when the bearing capacity reaches 10% of the minimum breaking strength, the elongation of safety rope is 3.2%.

High temperature resistance: after the high temperature resistance of 204 ℃± 5 ℃, the safety rope will not appear melting and coking phenomenon.

20.

Light safety rope

The product meets the requirements of ga494-2004 "fall protection equipment for fire protection".

The safety rope is a continuous and sandwich rope structure, and the main load-bearing part is made of continuous fiber.

There is no mechanical damage on the surface of the safety rope, and the whole rope is uniform in thickness and structure.

The ends of the rope end properly.

The diameter of safety rope is 9.5mm.

Breaking strength: the minimum breaking strength of light safety rope is ≥ 20KN.

Elongation: when the bearing capacity reaches 10% of the minimum breaking strength, the elongation of safety rope is 6.0%.

High temperature resistance: after the high temperature resistance of 204 ℃± 5 ℃, the safety rope will not appear melting and coking phenomenon.

The product has the characteristics of tensile resistance, friction resistance, high flexibility, strong tensile force, light weight, easy to carry and so on.

21.

Light safety rope

The product meets the requirements of ga494-2004 "fall protection equipment for fire protection".

The safety rope is a continuous and sandwich rope structure, and the main load-bearing part is made of continuous fiber.

There is no mechanical damage on the surface of the safety rope, and the whole rope is uniform in thickness and structure.

The ends of the rope end properly.

The diameter of safety rope is 12.5mm.

Breaking strength: the minimum breaking strength of light safety rope is 40.44kn.

Elongation: when the bearing capacity reaches 10% of the minimum breaking strength, the elongation of safety rope is 3.9%.

High temperature resistance: after the high temperature resistance of 204 ℃± 5 ℃, the safety rope will not appear melting and coking phenomenon.

The product has the characteristics of tensile resistance, friction resistance, high flexibility, strong tensile force, light weight, easy to carry and so on.

22.

Type I safety harness for firefighter rescue

(1) The product meets the requirements of ga494-2004 "fall prevention equipment for fire protection".

(2) There is at least one load-bearing connecting part in front of the waist or the chest and sword bone of the safety sling.

(3) The width of the load-bearing webbing of the safety harness shall not be less than 40m and not more than 70mm.

(4) The safety harness can be adjusted to fit different body types.

(5) The webbing edge of the safety harness can prevent the yarn from loosening by heat sealing or other measures.

(6) The stitches of the safety harness match with the webbing, which is easy to check with naked eyes; the back stitching of the stitching joint and end is not less than 13mm; the lines and stitches are straight and neat, without obvious bending or stacking, needle skipping, stitching and breakage.

(7) The pull ring of the safety belt is not welded.

(8) The buckle of the safety belt makes it easy to adjust the length of the safety belt, fast to wear, and no loosening or slipping.

(9) The corner radius of the buckle of the safety harness shall not be less than 6 mm.

(10) The buckle and the pull ring have no edges, burrs, cracks, obvious indentation, scratches and other defects, and their edges are arc-shaped.

(11) The parts and components of the safety harness shall be installed properly, the whole harness shall be straight and tidy, and there shall be no oil pollution, defect and other defects damaging the appearance.

(12) The product has static load performance, impact resistance, high temperature resistance and corrosion resistance of metal parts.

(13) Impact resistance: the safety harness will not loose from the manikin, and there will be no obvious damage to the safety performance of the safety harness.

(14) High temperature resistance: the ribbon and suture of the safety sling will not melt or coking.

(15) Corrosion resistance of metal parts: after the salt spray test, the appearance still meets the requirements of GB / T 6461-2002 appearance grade assessment of light grade.

(16) The width and thickness of the ribbon are 45 ± 2mm and 1.5 ± 0.5mm respectively.

(17) Vertical direction static tension: the whole belt has no damage after 22kn static load test.

(18) Ribbon material: high strength polyester fiber (polyester fiber).

23.

Fireman Class II Safety Harness

(1) The product meets the requirements of ga494-2004 "fall prevention equipment for fire protection".

(2) The width and thickness of the ribbon are 45 ± 2mm and 1.5 ± 0.5mm respectively.

(3) Vertical direction static tension: the whole belt has no damage after 22kn static load test.

(4) Ribbon material: high strength polyester fiber (polyester fiber).

(5) There is at least one load-bearing connecting part in front of the waist or the chest and sword bone of the safety sling.

(6) The width of the load-bearing webbing of the safety harness shall not be less than 40m and not more than 70mm.

(7) The safety harness can be adjusted to fit different body types.

(8) The webbing edge of the safety harness can prevent the yarn from loosening by heat sealing or other measures.

(9) The stitches of the safety harness match with the webbing, which is easy to check with naked eyes; the back stitching of the stitching joint and end is not less than 13mm; the lines and stitches are straight and neat, without obvious bending or stacking, needle skipping, stitching and breakage.

(10) The pull ring of the safety belt is not welded.

(11) The buckle of the safety belt makes it easy to adjust the length of the safety belt, fast to wear, and no loosening or slipping.

(12) The corner radius of the buckle of the safety harness shall not be less than 6 mm.

(13) The buckle and the pull ring have no edges, burrs, cracks, obvious indentation, scratches and other defects, and their edges are arc-shaped.

(14) The parts and components of the safety harness shall be installed properly, the whole harness shall be straight and tidy, and there shall be no oil pollution, defect and other defects damaging the appearance.

(15) The product has static load performance, impact resistance, high temperature resistance and corrosion resistance of metal parts.

(16) Impact resistance: the safety harness will not loose from the manikin, and there will be no obvious damage to the safety performance of the safety harness.

(17) High temperature resistance: the ribbon and suture of the safety sling will not melt or coking.

(18) Corrosion resistance of metal parts: after the salt spray test, the appearance still meets the requirements of GB / T 6461-2002 appearance grade assessment of light grade.

24.

Fireman rescue class III safety harness

(1) The product meets the requirements of ga494-2004 "fall prevention equipment for fire protection".

(2) The width and thickness of the ribbon are 45 ± 2mm and 1.5 ± 0.5mm respectively.

(3) Vertical direction static tension: the whole belt has no damage after 22kn static load test.

(4) Ribbon material: high strength polyester fiber (polyester fiber).

(5) There is at least one load-bearing connecting part in front of the waist or the chest and sword bone of the safety sling.

(6) The width of the load-bearing webbing of the safety harness shall not be less than 40m and not more than 70mm.

(7) The safety harness can be adjusted to fit different body types.

(8) The webbing edge of the safety harness can prevent the yarn from loosening by heat sealing or other measures.

(9) The stitches of the safety harness match with the webbing, which is easy to check with naked eyes; the back stitching of the stitching joint and end is not less than 13mm; the lines and stitches are straight and neat, without obvious bending or stacking, needle skipping, stitching and breakage.

(10) The pull ring of the safety belt is not welded.

(11) The buckle of the safety belt makes it easy to adjust the length of the safety belt, fast to wear, and no loosening or slipping.

(12) The corner radius of the buckle of the safety harness shall not be less than 6 mm.

(13) The buckle and the pull ring have no edges, burrs, cracks, obvious indentation, scratches and other defects, and their edges are arc-shaped.

(14) The parts and components of the safety harness shall be installed properly, the whole harness shall be straight and tidy, and there shall be no oil pollution, defect and other defects damaging the appearance.

(15) The product has static load performance, impact resistance, high temperature resistance and corrosion resistance of metal parts.

(16) Impact resistance: the safety harness will not loose from the manikin, and there will be no obvious damage to the safety performance of the safety harness.

(17) High temperature resistance: the ribbon and suture of the safety sling will not melt or coking.

(18) Corrosion resistance of metal parts: after the salt spray test, the appearance still meets the requirements of GB / T 6461-2002 appearance grade assessment of light grade.

25.

Fire protection fall protection accessories

This product meets the requirements of the GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard. It is a supporting component used with safety ropes, safety harnesses, and safety belts for firefighters' rescue operations.

Features of anti-fall accessories: strong tensile force, wear resistance, light weight, multiple hanging points, flexible and durable. The quality implements national industry standards.

Fall prevention accessories include 1 Ф12mm×50m static rope, 2 steel D-hooks, 2 aluminum D-hooks, 1 pair of hand risers, 1 foot riser, and 1 chest riser , 1 15-inch fixed professional belt, 1 lock, 1 9mm auxiliary rope, 1 rescue sling, 1 3-inch pulley, 1 rescue 8-shaped ring, 1 rope sheath, 1 cushion, 24 sets of 1 pair of rescue gloves, 1 1-meter safety belt, 1 equipment bag, etc.

26.

Lightweight safety hook

This product meets the requirements of the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard.

Opening distance: 22.5mm.

The material of the hook body: aluminum alloy.

Long axis direction: breaking strength when the opening is closed: ≥27kN.

Long axis direction: breaking strength when the opening is open: ≥7kN.

Minor axis direction: the breaking strength of the minor axis of the light fire safety hook is ≥7kN.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance still meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

27.

  Pulley device

This product meets the requirements of the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard.

Side plate and pulley material: aluminum alloy 7075.

Appearance and processing: There are no edges, corners, hairs, cracks, obvious indentations and scratches, and the edges are curved.

Work load: The light pulley device can withstand a test load of not less than 5kN, and the general-purpose pulley device can withstand a test load of not less than 22kN. After the test, there will be no permanent damage to the device.

Permanent injury, obvious deformation or damage to the rope body.

Ultimate load: the light pulley device can withstand a test load of not less than 22kN without failure, and the general-purpose pulley device can withstand a test load of not less than 36kN without failure. If there is a handle ring at the bottom of the pulley device, the handle ring of the light pulley device can withstand a test load of not less than 12kN without failure, and the handle ring of the universal pulley device can withstand a test load of not less than 19.5kN without failure.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance still meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

Logo: There is a permanent logo in a prominent position of the fire-fighting anti-fall equipment, and its content is: product model, use trademark (or manufacturer name), batch number, and production date, etc.

28.

     Ascender

1. This product complies with the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard requirements.

2. Side plate thickness: 3.5±0.3mm.

3. Work load: ≥5KN.

4. The metal material of the side plate is aluminum alloy, and the metal material of the ratchet teeth is stainless steel.

5. Appearance and processing:

(1) Metal parts and metal parts have no edges, corners, burrs, cracks, obvious indentations and scratches, and their edges are curved.

(2) The edge of the webbing used for auxiliary equipment shall be heat sealed or other measures to prevent the webbing from loosening.

(3) The stitches on the webbing used for auxiliary equipment match the webbing; the stitching interface and the end back seam are no less than 13mm; the line and stitches are straight and neat, without obvious bending or stacking, no skipped stitches, or open threads , Disconnection.

Work load: It can withstand a test load of not less than 5kN, and there will be no permanent damage to the device, obvious deformation or damage to the rope body after the test.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

29.

    Descender

This product meets the requirements of the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard.

Applicable rope diameter range: 7.5～10.5mm.

Ultimate load ≥13.5kN.

Damping mechanism material: aluminum.

Metal parts and metal parts have no edges, corners, burrs, cracks, obvious indentations and scratches, and their edges are curved.

Work load: It can withstand a test load of not less than 5kN, and there will be no permanent damage to the device, obvious deformation or damage to the rope body after the test.

Ultimate load: The light descender can withstand a test load of not less than 13.5kN without failure, and the general type descender can withstand a test load of not less than 22kN without failure.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance still meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

There is a permanent mark in a prominent position of the fire protection fall protection equipment.

30.

    Rope grab

This product meets the requirements of the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard.

Side plate thickness: 3±0.3mm.

Work load: ≥11KN.

Material of side plate and locking mechanism: aluminum alloy.

Appearance and processing: The metal parts and metal parts have no edges, corners, burrs, cracks, obvious indentations and scratches, and their edges are curved.

Work load: It can withstand a test load of not less than 11kN, and there will be no permanent damage to the device, obvious deformation or damage to the rope body after the test.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance still meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

There is a permanent mark in a prominent position of the fire protection fall protection equipment.

31.

   Lightweight

  portable fixture

This product meets the requirements of the national GA494-2004 "Fall Prevention Equipment for Fire Fighting" standard.

The width of the webbing: 25±2mm, the thickness of the webbing: 2.8±0.2mm.

Ultimate load: ≥22KN.

Appearance and processing: The metal parts and metal parts have no edges, corners, burrs, cracks, obvious indentations and scratches, and their edges are curved.

Work load: Each load-bearing connection part of the light portable fixing device can bear a test load of not less than 5kN, and each load-bearing connection part of the general-purpose portable fixing device can bear a test load of no less than 13kN, and there will be no device failure after the test. Permanent damage or obvious deformation.

Ultimate load: each bearing connection part of the light portable fixing device can bear a test load of not less than 22kN without failure of the device, and each bearing connection part of the universal portable fixing device can bear a test load of no less than 36kN without failure of the device.

Corrosion resistance: After the 48h neutral salt spray test specified in GB/T 10125-1997, the appearance meets the requirements of GB 6461-2002 for the minor level of appearance rating, and the original performance is maintained.

There is a permanent mark in a prominent position of the fire protection fall protection equipment.
