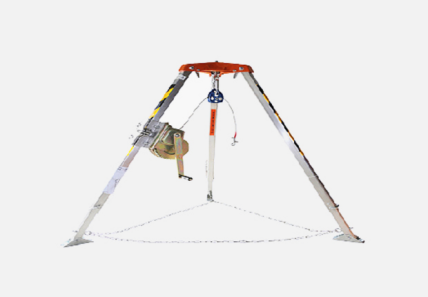

Rescue tripod
The main parameters
Model: KALN-CAJ-1
Cable:5MM x 30 m
Gear ratio:8:1
Blocking force:1800kg
Workload:180kg
Blocking force:22kN
Working height:214cm(full expansion)134cm(full shrinkage).
Automatic brakes
Packing size:160×40×40cm
Details
The retractable feet made of high-strength lightweight alloy have a safety factor greater than 10,and the soles have a ring-type protective chain. The winch is equipped with a rising and falling self-locking device to ensure the safety of the sling.
The sling is made of special stainless steel wire rope, which is flexible and does not cause damage to the rope due to rust or lack of oil. Easy to assemble, according to local conditions of the device in the wellhead, pit mouth, and not subject to uneven ground restrictions. Retractable feet made of high-strength lightweight alloys with ring-type protective chains on the soles
Key parameters:
Cable:5MM x 30 m
Gear ratio:8:1
Blocking force:1800kg
Workload:180kg
Blocking force:22kN
Working height:214cm(full expansion)134cm(full shrinkage).
Automatic brakes
Packing size:160×40×40cm
