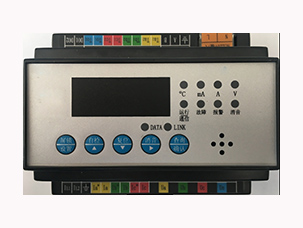

Smart power safety detector

I. Product Introduction:

Smart power safety detector is a new type of power safety online monitoring terminal, optional special current transformer, residual current transformer and temperature sensor, used to monitor the current, voltage, electricity, leakage and temperature of the protected distribution line, timely find the electrical line or equipment leakage, temperature overrun, overload, overvoltage and other electrical faults, built-in 4G/LORA module, comprehensive realization of power safety and power consumption loss cloud monitoring.

Second, technical characteristics

1. Auxiliary power supply: AC220V ±10% 50HZ;

2. Provide 1 residual current, 4 temperature and three-phase single-loop voltage, current, power, electricity and other parameter monitoring;

3. Residual current monitoring range: 20-1200mA, monitoring accuracy ±5%;

4. Temperature monitoring range: 0-140ºC, monitoring accuracy ± 2 ºC;

5. Electrical parameter monitoring accuracy: voltage and current level 0.5, other level 1;

6. Built-in 4G/LORA/NBIOT wireless module;

7. Local and remote upgrade function;

8. It has the function of power down and power on detection;

9. With sound and light alarm function;

10. Standard rail installation;

11. Its own power consumption is less than 5W;

12. Operating environment temperature: -15°C~+55°C;

13. After the metered electricity reaches 210000000 degrees, clear zero
